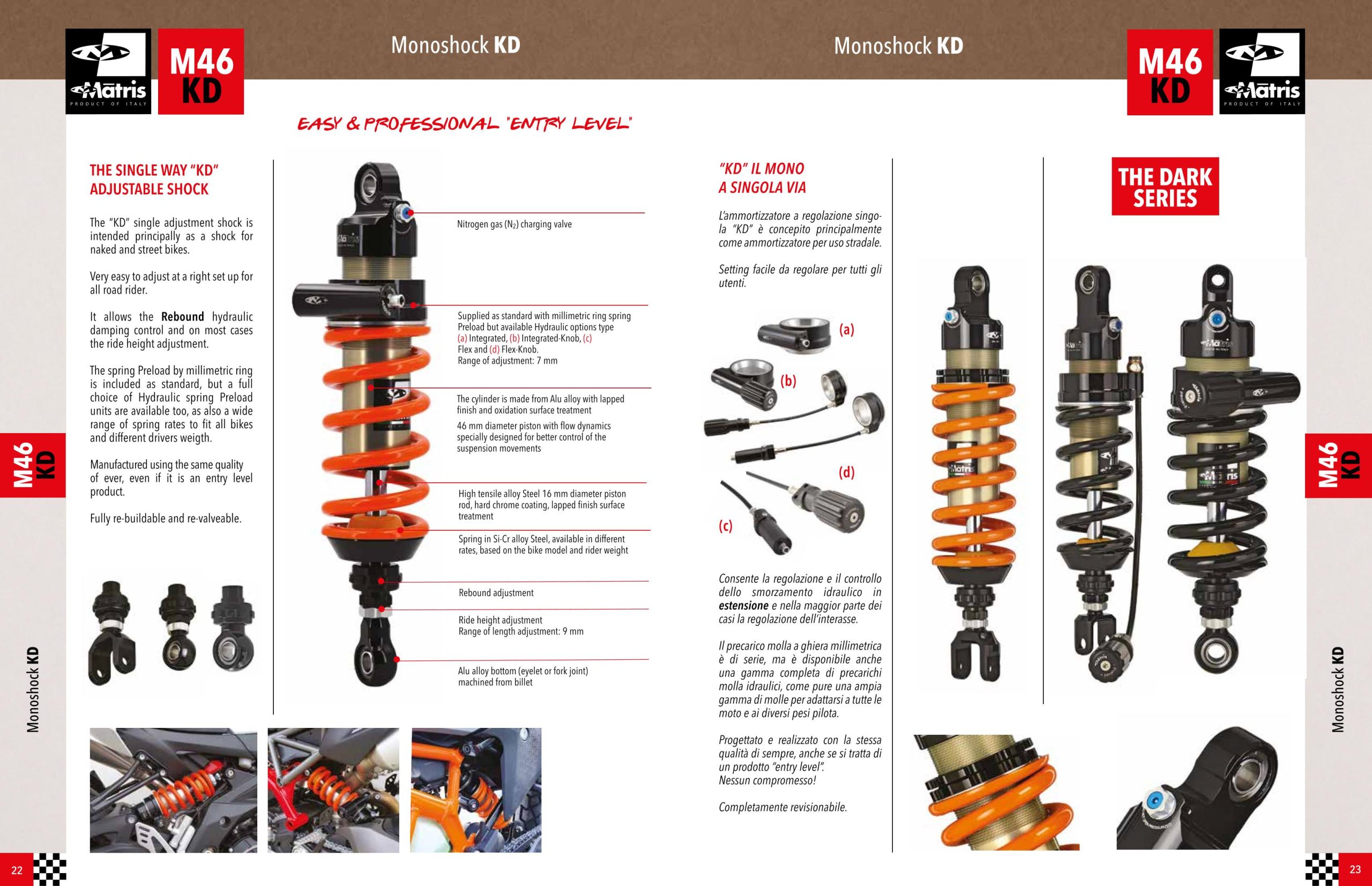

M46KD

Share: 0
Categories: , .

The M46KD is a rear shock for Naked & Road bikes, of very easy use and adjust for the road rider to get a right set-up.

Computerized engineering systems are used to design, project and produce all the components and only materials of high-end technical and mechanical characteristics are used.

High precision machining with the objective of reducing weight and friction to offer a basic range of shocks to improve comfort, safety, and setting (always with Matris “look”).



Single-way adjustable hydraulic shock: REBOUND.

Cylinder D.46 with inner pressurized expansion tank (Nitrogen gas N2) with full floating piston for gas/oil separating.

Piston shaft D.16 mm made from high tensile alloy Steel, hard Chrome coatted.

Fully re-buildable and re-valveable.

Spring in Cr-Mb alloy Steel, available in different rates (based on the bike and the rider weight).

All components, machined from Alu alloy, are with anodizing treatment.

Matris_twinshock-M40D-M40E_zoom1 new

Nitrogen gas (N2) charging valve







The rear shocks series M46KD are supplied as standar with spring Preload by millimetric rings . On demand, a unit of Hydraulic spring Preload. Is also available. Type: (a) Integrated, (b) Flex, (c) Flex-Knob, according to different applications.

Range of adjustment: 7 mm







Matris_sealed-fork-cartridge-kit-F25SA-zoom3



Also available the new IK integrated hydraulic spring preload.





Matris_monoshock-M46K_zoom2

Bottom eyelet or fork joint, machined from billet in Alu alloy (Al 7075)

Many models, are also available with ride height adjustment for a customizable setting of the bike.

Range of length adjustment: 9 mm

Matris_monoshock-M46KD-dark-series-zoom



M46KD DARK Series

Available also with Black Spring.
